| 起源の場所: | 中国 |
| ブランド名: | ZEMO |
| 証明: | CE , ISO |
| モデル番号: | SMD-B160/50M |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | Polywoodの場合 |
| 受渡し時間: | 支払の後の3-7仕事日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタン・ユニオン、MoneyGram |
| 供給の能力: | 300セット/月 |
| 製品名: | 手動バット溶接融合機械 | 管のサイズ（mm: | 50,63,75,90,110,125,140,160、 |
|---|---|---|---|
| 最高暖房版。臨時雇用者。: | 270 ℃ | 表面（170-250 ℃）のTemp.deviation: | ≤±5℃ |
| 定常電圧: | 220V、50/60HZの単一フェーズ | 暖房版力: | 1KW |
| 平になる用具力: | 0.7KW | 総力: | 1.75KW |
| 重量: | 44kG | 保証: | 24か月 |
| ハイライト: | PP Manual Butt Fusion Welding Machine,OEM Manual Butt Fusion Welding Machine,Manual Butt Fusion Welder |
||

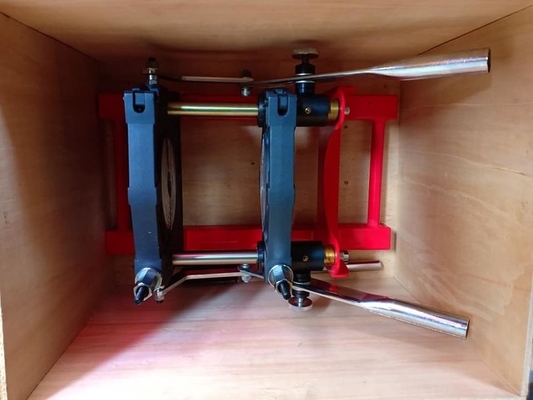

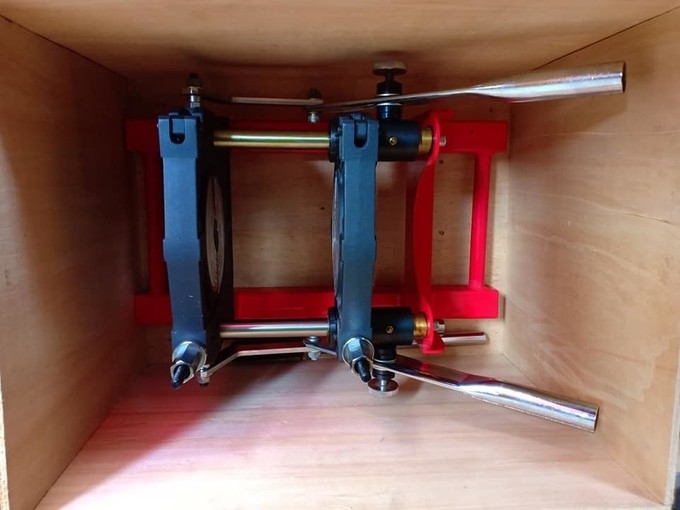

| product name | 160MM Manual Butt Weld Fusion Machine | |
|
Model
|
SMD-B160/50M
|
|
|
Pipe size (mm)
|
50,63,75,90,110,125,140,160
|
|
| Pipe material | PE PP PVDF PPR HDPE etc | |
|
Heating plate Max. Temperature
|
270℃
|
|
| application | Butt Weld Fusion PE PP PVDF PPR HDPE etc | |
|
Temp.deviation in surface (170-250 ℃)
|
≤±7℃
|
|
|
Working Voltage
|
220V , 50/60HZ , single phase
|
|
|
Heating plate power
|
1KW
|
|
|
Planing tool power
|
0.7KW
|
|
|
Total Power
|
1.7KW
|
|
|
Weight
|
44KG
|
|
|
Packing
|
Cases
|
2 plywood cases
|
|
Volume
|
0.31CBM
|
|
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.
Manual Butt Weld Fusion Machine Guarantee and Service
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
